QGR Steam Locomotives - 5 " Gauge - AC16

Price:
$1,995.00
Weight:
20.00 KGS
Shipping:
Calculated at checkout
Quantity:


Product Description

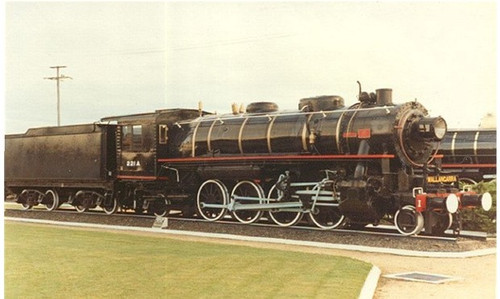

Wartime Emergency Order
During World War II, Queensland Railways were pushed to the limit transporting troops and supplies, and because the Australian and British works could not fulfil requirements, a request was made to the United States government under lend-lease terms.
In April 1942, the American Standardisation Committee designed a 2-8-2 locomotive for use in all parts of the world. The first five units were shipped to Brisbane in May 1943 from the Baldwin Locomotive Company.
Entering service on 26 June 1943, the locomotive was known as the American C16 (AC16).




Wartime Emergency Order

During World War II, Queensland Railways were pushed to the limit transporting troops and supplies, and because the Australian and British works could not fulfil requirements, a request was made to the United States government under lend-lease terms.

In April 1942, the American Standardisation Committee designed a 2-8-2 locomotive for use in all parts of the world. The first five units were shipped to Brisbane in May 1943 from the Baldwin Locomotive Company.

Entering service on 26 June 1943, the locomotive was known as the American C16 (AC16).




Dimensions

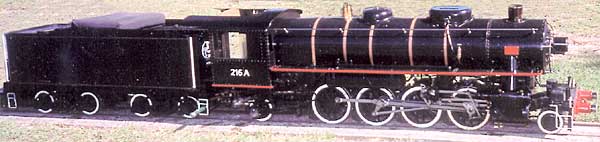

The 5 inch gauge locomotive dimensions are as follows:

  • Length of Locomotive 1300mm
  • Length of Tender 990mm
  • Width 280mm
  • Height 430mm
  • Driving Wheel Diameter 152mm



Individual parts will be available on this site soon. For the moment, please print our order form to purchase individual parts.

Q.G.R. AC16 5" gauge 2-8-2 Locomotive
H1600 Drawings (set of thirteen). 900 gm $232.60 set
H1601-4 Driving Wheels CI.11 spoke style. A-B-C-D set of 8 req. 15 kg/set. $329.10 set
H1605 Leading Wheel Disc CI. 2 req. 750 gm $12.80 ea
H1606 Trailing & Tender Wheels Disc CI. 10 req. 900 gm $15.60 ea
H1611 Buffer Stock CI. 4 req. 180 gm $6.25 ea
H1612 Locomotive Axle Boxes CI. 2 sticks of 4. 1.65 kg $37.40 ea
H1618 Leading Bogie Axle Box CI. 2 req. 400 gm $7.75 ea
H1613 Boiler Support "A" CI. 1 req. 450 gm $16.75 ea
H1614 Boiler Support "C" CI. 1 req. 500 gm $19.50 ea
H1616 Front Bogie Centre Pivot CI. 1 req. 400 gm $16.10 ea
H1607 Cylinder CI. 2 req. 7 kg $162.20 ea
H1617 Weight Shaft Bearing CI. 1 req. 300 gm $12.50 ea
H1615 Eccentric Strap CI. 2 req. 300 gm $10.40 ea
H1610 Piston Valve Cover & Guide CI. 2 req. 225 gm $9.80 ea
H1609 Cylinder Back Cover CI. 2 req. 450 gm $16.65 ea
H1619 Axle Pump P.B. 2 req. 400 gm $39.50 ea
H1620 Boiler Cover PB. 1 req. 500 gm $36.40 ea
H1621 Boiler Bush PB. 1 req. 500 gm $37.20 ea
H1622 Trailing Truck Axle Box CI. 2 req. 1.0 kg $26.75 ea
H1623 Trailing Truck Spring Bracket PB. 1RH - 1LH 400 gm $18.60 ea
H1624 Smoke Box Door PB. 1 req. 1.5 kg $61.70ea
H1625 Regulator PB. 1 req. 500 gm $16.95 ea
H1626 Regulator Yoke PB. 1 req. 80 gm $3.60 ea
H1628 Fire Box Door & Ring PB. 1 req. 150 gm $43.56 ea
H1629 Sand Dome PB. 1 req. 2.4 kg $101.25 ea
H1630 Steam Dome PB. 1 req. 1.4 kg $65.95 ea
H1631-4 Locomotive Brake Cylinder c/w top bottom - piston 1 req. 900 gm $71.75 ea
H1635 Brake blocks CI. 1 ring req. 1 kg $54.35 ea
H1639 Dry Header Body PB. 1 req. 1 kg $21.90 ea
H1636 Tender Bogie Frames CI. 4 req. 2 kg $41.20 ea
H1637 Tender Bogie Bolster CI. 2 req. 1.3 kg $21.50 ea
H1638 Tender Brake Blocks CI. 2 rings req. 650 gm $16.40 ea
H1640-3 Tender Brake Cylinder incs. Body-top-bottom-piston P.B 1 req. 1 kg $81.20 ea
H1644 Silencer Lost Wax PB. 1 req. 300 gm $57.35 ea
H3478 Tender Hand Pump PB. 1 req. 1 kg $64.95 ea

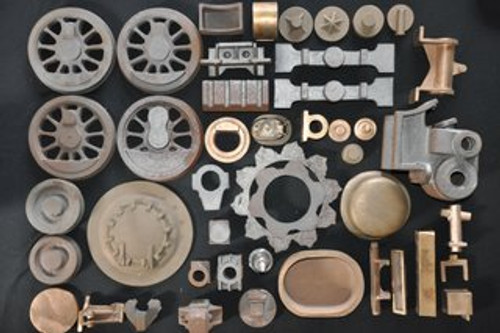

H1699 Complete set of Castings - 76 items  80 kg $1995.00
H1608 Cylinder Front Covers CI. 2 req. 70x10. 600 gm $6.55 ea
H1627 Piston Valve Cover CI. 2 req. 45d x 5. 150 gm $4.40 ea
H1647 Driving Wheel Tyre 8 req. 160 x 132 x 18. 9.6 kg $169.90 set
H1648 Locomotive Frames Water Jet Cut 1pair $756.00  ea
